Station Perimeter Security Monitoring System

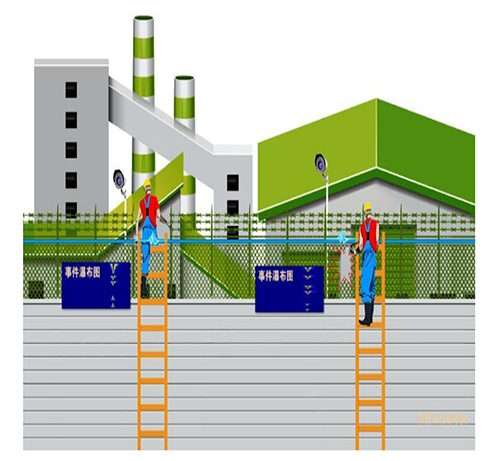

Background: due to prevent illegal behaviors such as climbing and intrusion near the perimeter of the site.

Teohnologlea: Rayleigh intefferometdc positioning technology and optical frequency domain scanning technology.

Technical Indicators

  • D Alarm evaluation: climbing, crossing, broken fiber
  • Fiber type: single mode
  • Measuring distance: 15km
  • Sampling Interval: 0.4m
  • Positioning accuracy: ±5m
  • Occupied optical cable cue number. 1 core
  • Sweep time: 0.4s
  • Power consumption: s 50W
  • Single machine weight: 8kg
  • Communication interface: R5485, RS232, Ethernet, use
